Pathlite SL 7.0
// //

Pathlite SL 7.0

  • stealth

Pathlite SL 7.0 - Leave the office behind and head off the beaten track. With its grippy Maxxis tyres and comfortable Suntour NRX-E 75 mm suspension, the Pathlite SL 7.0 is the perfect off-road fitness bike for getting out and about.

Pathlite SL 7.0 - Leave the office behind and head off the beaten track. With its grippy Maxxis tyres and comfortable Suntour NRX-E 75 mm suspension, the Pathlite SL 7.0 is the perfect off-road fitness bike for getting out and about.

Pathlite SL 7.0

Awards and reviews

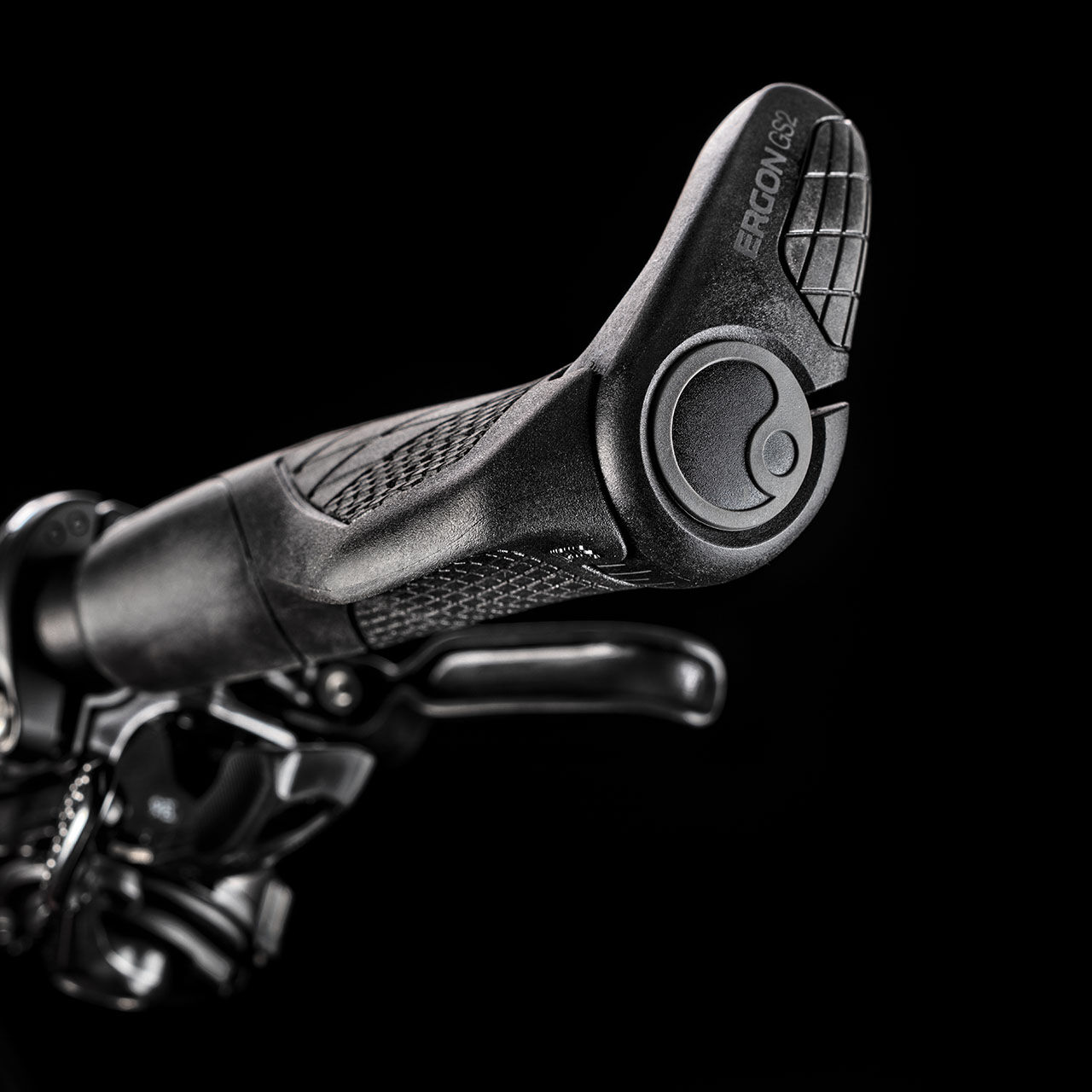

A reliable Shimano XT drivetrain means you'll always find the right gear, while a 630 mm wide cockpit and Shimano SLX hydraulic disc brakes provide you with full control. An Ergon SMC 4 saddle and GS2 grips boost comfort so long rides are no problem.

See components

See geometry & dimensions

The highlights of this component set

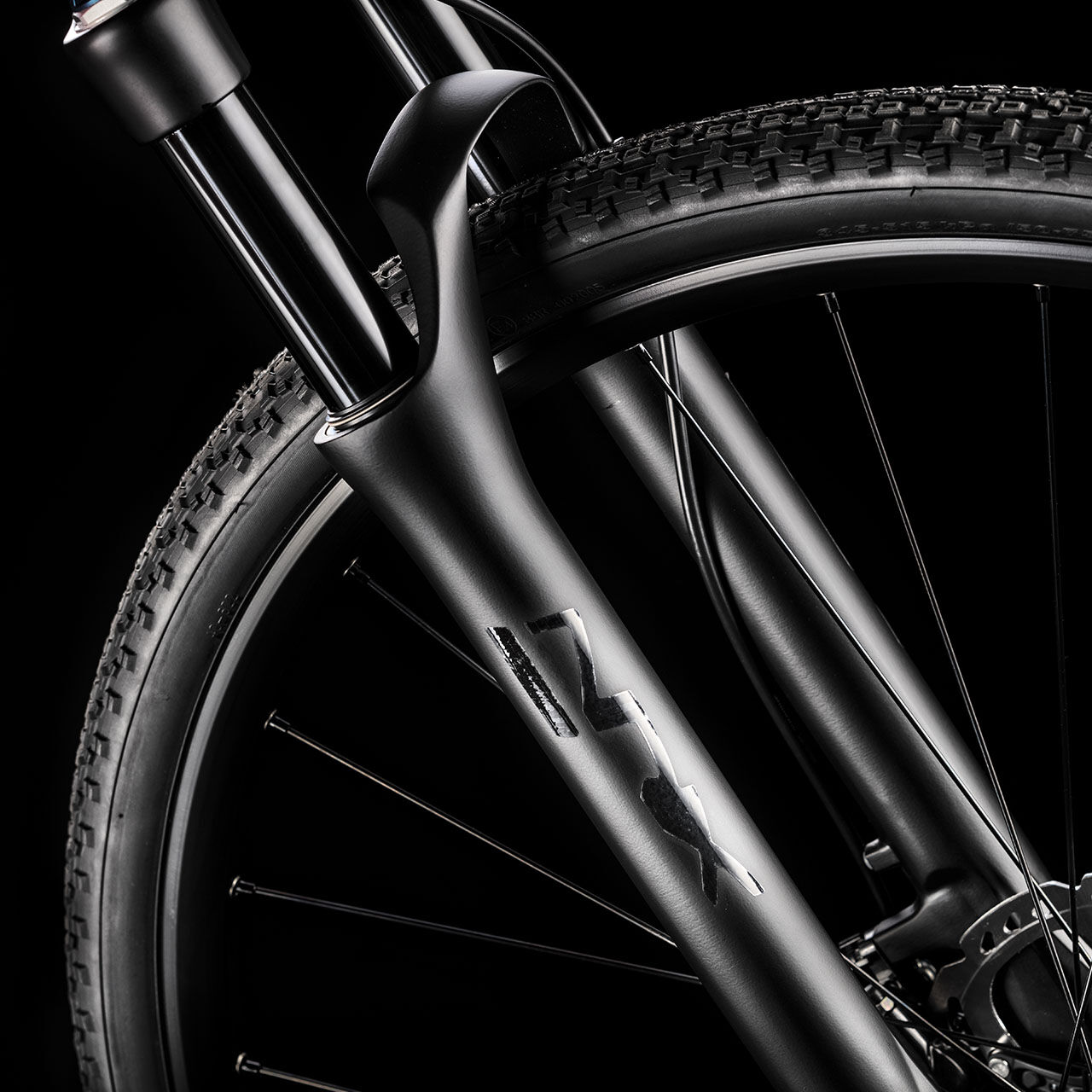

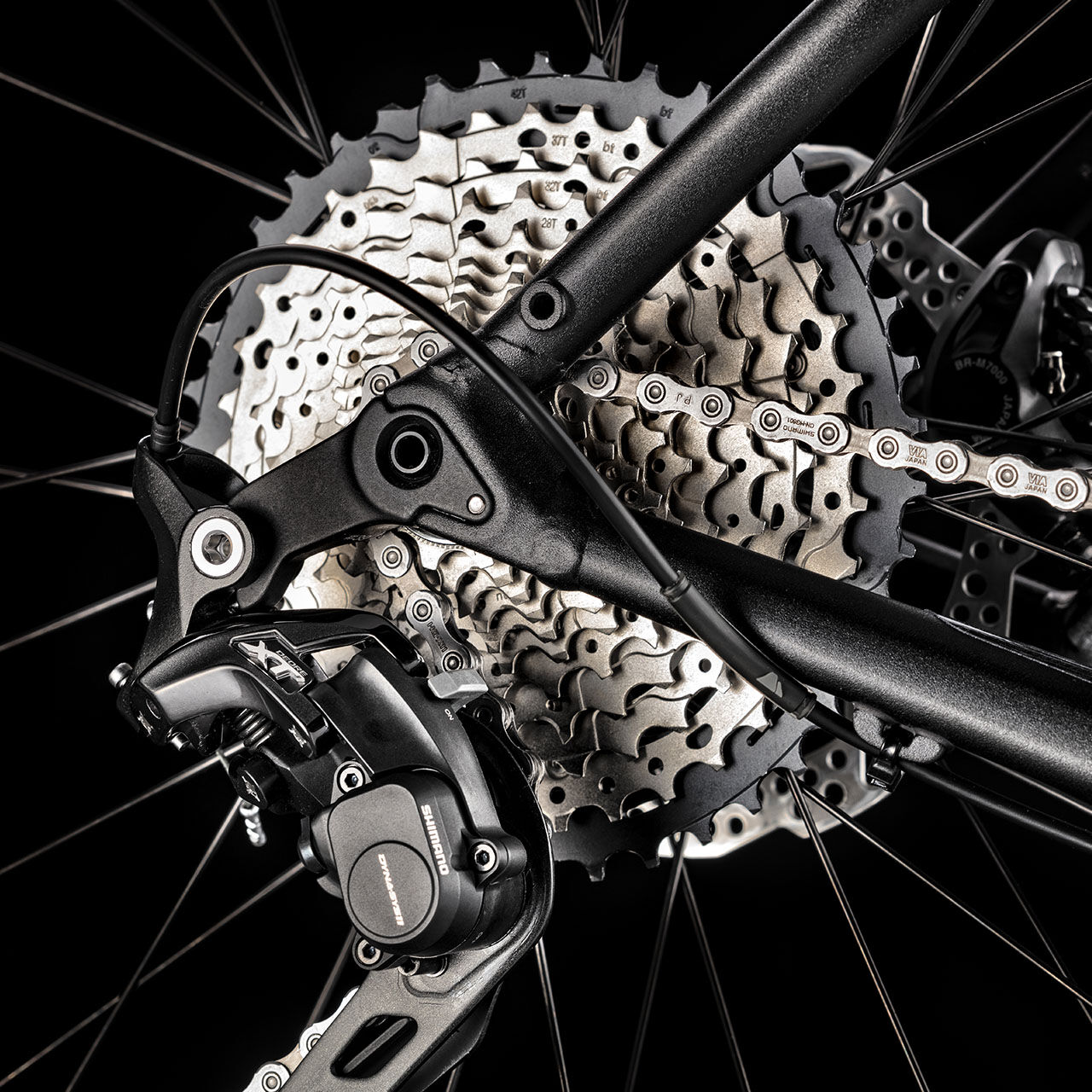

Equipped with a Shimano XT drivetrain and SLX disc brakes as well as Suntour NRX-E suspension, the Pathlite SL 7.0 is ready to lead the way off the beaten track.

View all components
  • Frame

    • Frame

      • Canyon Pathlite AL SL
      • Material: Aluminium
      • Axle Dimension: 12 x 142 mm
      • Brake Mount: Post Mount
    • Suspension Fork

      • SR Suntour NRX-E Air
      • Travel: 75 mm
      • Axle Dimension: 15 x 100 mm

    Drivetrain

    • Rear Derailleur

      • Shimano Deore XT M8000 SGS
    • Front Derailleur

      • Shimano SLX M7020
    • Shift Lever

      • Shimano SLX M7000 2/3s
      • Clamp: I-Spec II
    • Shift Lever

      • Shimano SLX M7000 11s
      • Clamp: I-Spec II
    • Cassette

      • Shimano SLX M7000 11-42 11s
    • Crank

      • Shimano Deore XT M8000 38/28
    • Bottom bracket

      • Shimano Pressfit BB-MT500
    • Chain

      • Shimano CN-HG601 11s

    Brakes

    • Disc Brake

      • Shimano SLX M7000
      • Technology: Ice Tech
    • Disc Brake

      • Shimano SLX M7000
      • Technology: Ice Tech
    • Brake Rotor

      • Shimano RT54
      • Disc Mount: Centerlock
    • Brake Rotor

      • Shimano RT54
      • Disc Mount: Centerlock

    Wheels

    • Wheel

      • Alexrims MD23 | MT400
      • Rim Material: Aluminium
      • Rim Width: 23 mm
      • Hub Type: MT400
    • Wheel

      • Alexrims MD23 | MT400 SH10
      • Rim Material: Aluminium
      • Rim Width: 23 mm
      • Hub Type: MT400
    • Tyre

      • MAXXIS Rambler 40mm
    • Thru Axle

      • Canyon Quixle
      • Material: Aluminium
      • Built-in dimension: 12 x 142 mm
      • Lever: Integrated

    Cockpit

    • Cockpit

      • Canyon CP16 Cockpit
      • Material: Aluminium
      • Upsweep: 3°
      • Backsweep: 7°
    • Grips

      • Ergon GS2

    Seat

    • Saddle

      • Ergon SMC4
    • Seatpost

      • Iridium

    Accessories

    • Flat Pedals

      • Canyon VP-536
    • Manuals and Accessories

      • Canyon Smallbox
      • Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste

Find your size

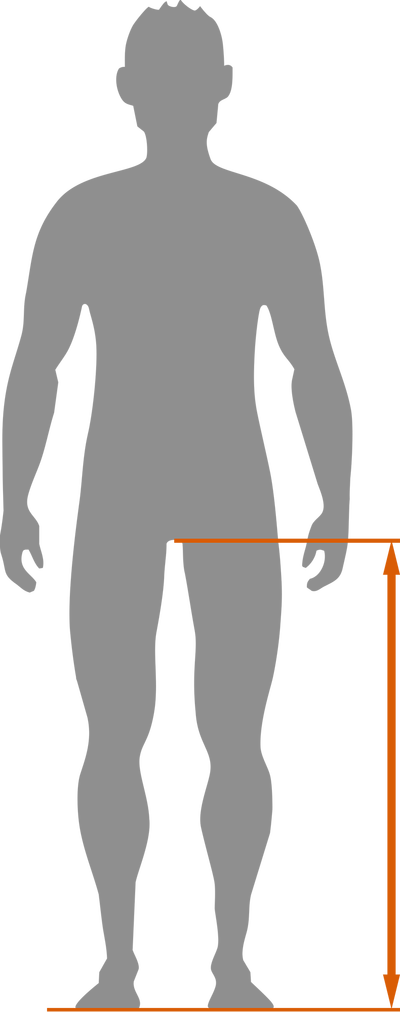

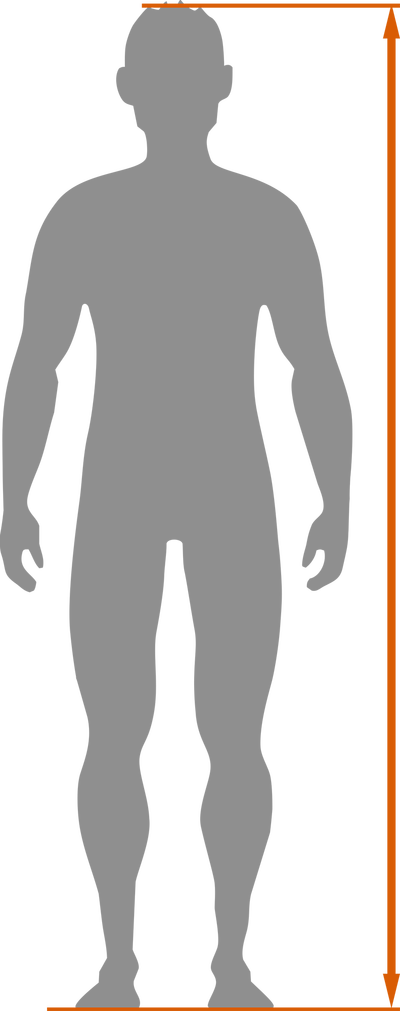

For the best results, click on the "Help" texts for detailed explanations on how to carry out each specific measurement.

All Pathlite models

2 items
    • stealth
    • stealth
    • true blue

Bike classification

Bikes of category 2 are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city and trekking bikes. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use.
